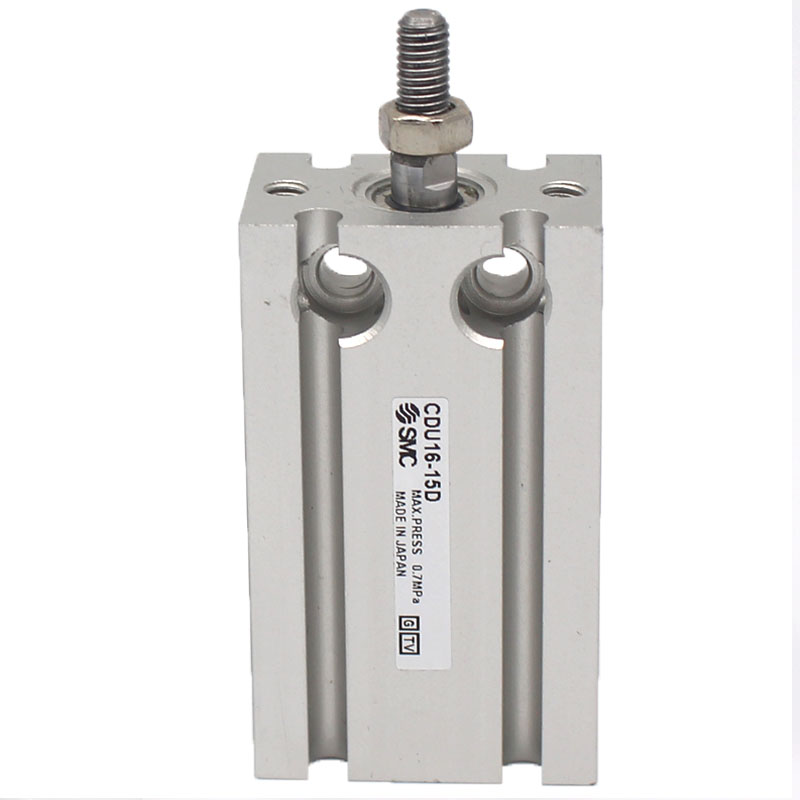

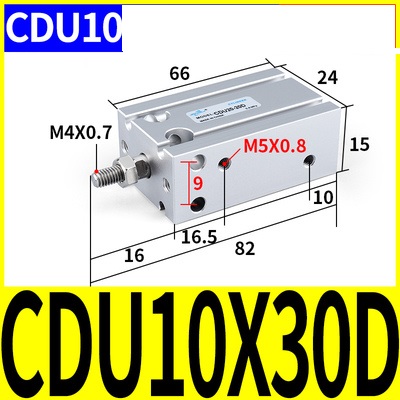

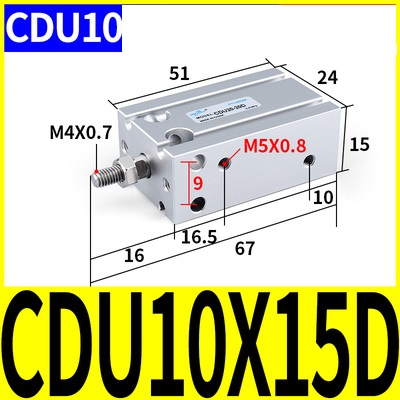

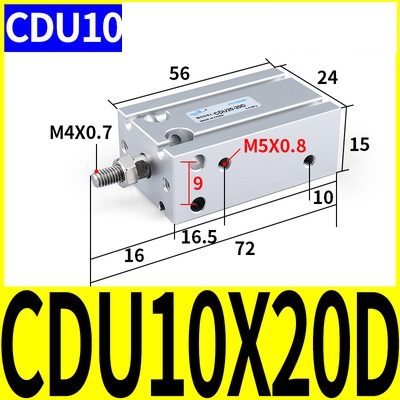

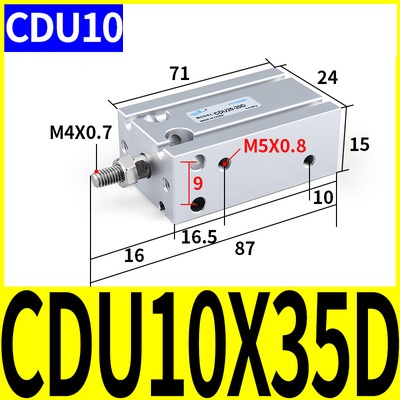

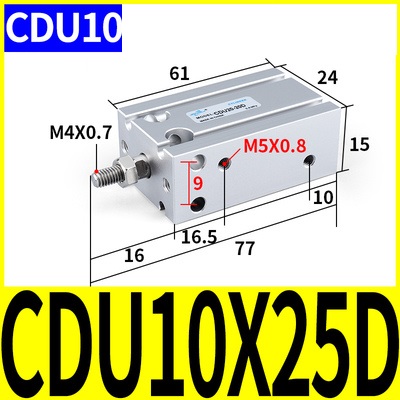

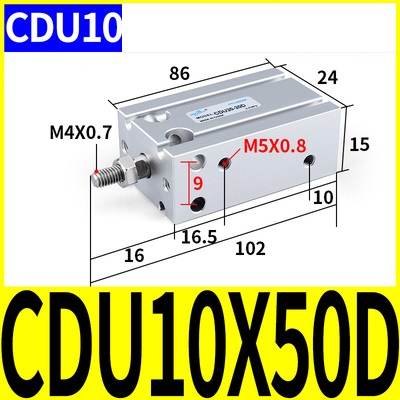

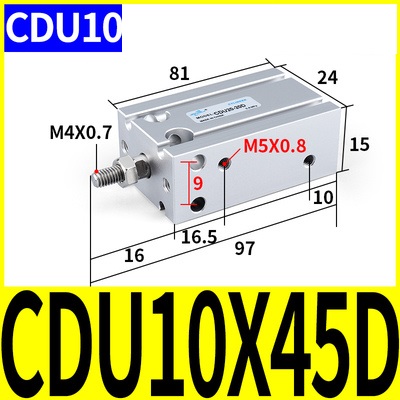

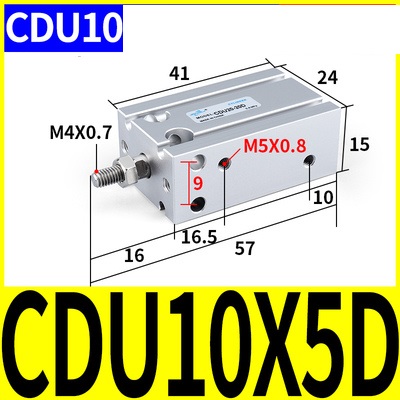

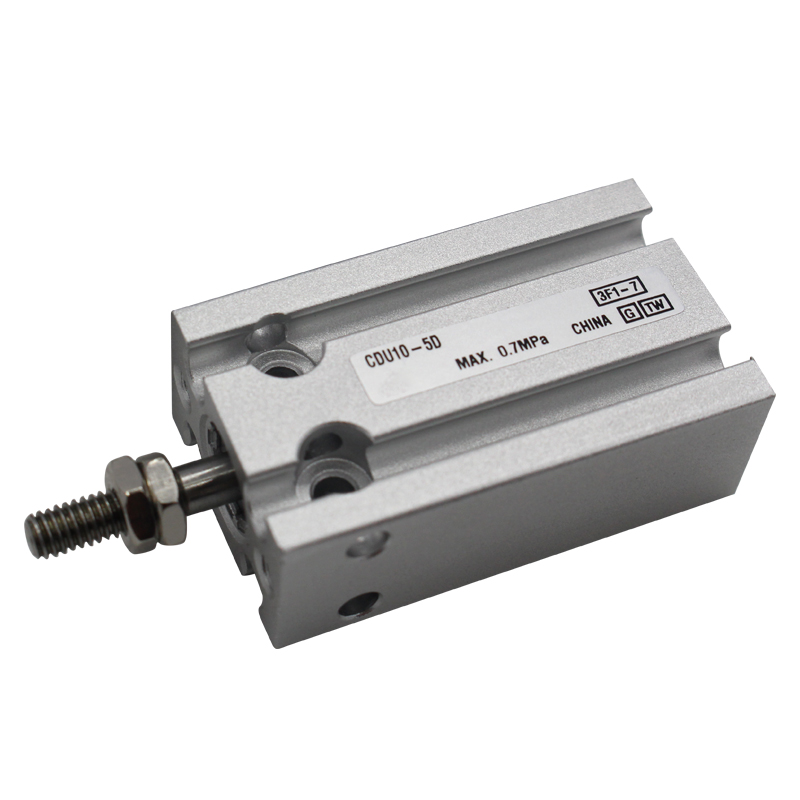

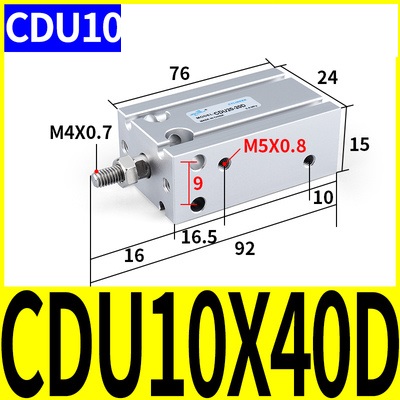

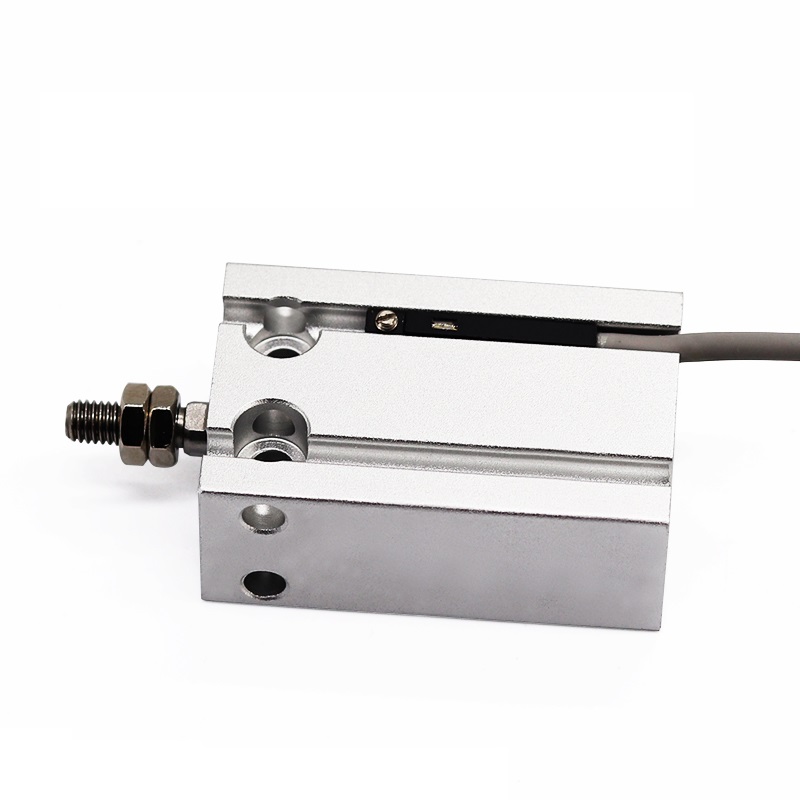

Xi lanh CDU10-5/10/15/20/25/30/35/40/45/50D

Liên hệ

Xuất xử: SMC
MODEL
THÔNG SỐ KỸ THUẬT XI LANH SMC CU10 SERIES Xi lanh khí CDU10-10D , CDU10-10S, CDU10-10T, CDU10-12T, CDU10-15D , CDU10-15D-XB13, CDU10-15S, CDU10-15T, CDU10-20D, CDU10-25D, CDU10-30D, CDU10-35D, CDU10-35D-XC19, CDU10-40D, CDU10-45D-XC19, CDU10-5D, CDU10-5D-XB9 , CDU10-5S, CDU10-5T, CDU10-50D, CDU10-55D-XC19, CDU10-60D, CDU10D-E5314-15, CDU10D-E6675-35, CDU10D-E7172-20, CDU10D-E7387-10 Bore size (mm) 6 10 16 20 25 32 Fluid Air Action CU-D Double acting, Single/Double rod CU-S/T Single acting, Single rod, Spring return/extend Minimum operating pressure Double acting 0.12 MPa 0.06 MPa 0.05 MPa Single...

THÔNG SỐ KỸ THUẬT XI LANH SMC CU10 SERIES

Xi lanh khí CDU10-10D, CDU10-10S, CDU10-10T, CDU10-12T, CDU10-15D, CDU10-15D-XB13, CDU10-15S, CDU10-15T, CDU10-20D, CDU10-25D, CDU10-30D, CDU10-35D, CDU10-35D-XC19, CDU10-40D, CDU10-45D-XC19, CDU10-5D, CDU10-5D-XB9 , CDU10-5S, CDU10-5T, CDU10-50D, CDU10-55D-XC19, CDU10-60D, CDU10D-E5314-15, CDU10D-E6675-35, CDU10D-E7172-20, CDU10D-E7387-10

Bore size (mm) 6 10 16 20 25 32
Fluid Air
Action CU-D Double acting, Single/Double rod
CU-S/T Single acting, Single rod, Spring return/extend
Minimum operating pressure Double acting 0.12 MPa 0.06 MPa 0.05 MPa
Single acting 0.2 MPa 0.15 MPa 0.13 MPa
Maximum operating pressure 0.7 MPa
Proof pressure 1.05 MPa
Ambient and fluid temperature  -20 to 80°C (No freezing)
Cushion Rubber bumper
Lubrication Non-lube
Piston rod dia. 3 mm 4 mm 6 mm 8 mm 10 mm 12 mm
Rod end thread (male) M3x0.5 M4x0.7 M5x0.8 M6x1.0 M8x1.25 M10x1.25
Port Size M5x0.8
Port size M5x0.8
