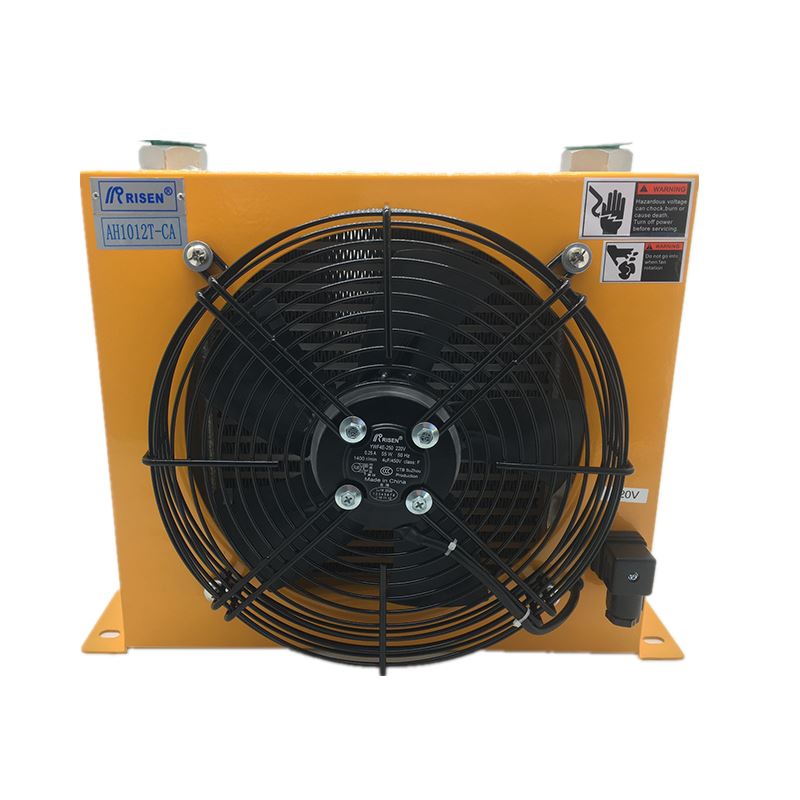

Bộ làm mát dầu AH1012T-CA

Liên hệ

Xuất xử: RISEN-TAIWAN
Mô tả bộ làm mát dầu AH1012-CA Bộ làm mát dầu , quạt làm mát dầu , quạt giải nhiệt dầu thủy lực , AH1012-CA, AH1012-3PCA , AH0608T , AH0608LT , AH1417-A To protect the heat exchanger, it should be installed to the return line of the systems or when the equipment is started up running by the cold oil, a by-pass valve should always be mounted in parallel to the exchanger in order to avoid excessive pressure surges.An alternate piping method is using a separate circuit from the reservoir with a small pump to drive the oil through the heat exchanger.   Filters are often incorporated into these side circuits or kidney loops, as they are sometimes called. For all applications, except oil cooling, it is recommended to...

Mô tả bộ làm mát dầu AH1012-CA

Bộ làm mát dầu , quạt làm mát dầu , quạt giải nhiệt dầu thủy lực , AH1012-CA, AH1012-3PCA , AH0608T , AH0608LT , AH1417-A

To protect the heat exchanger, it should be installed to the return line of the systems or when the equipment is started up running by the cold oil, a by-pass valve should always be mounted in parallel to the exchanger in order to avoid excessive pressure surges.An alternate piping method is using a separate circuit from the reservoir with a small pump to drive the oil through the heat exchanger.



Filters are often incorporated into these side circuits or kidney loops, as they are sometimes called.
For all applications, except oil cooling, it is recommended to consult our technical department.

Thông số kỹ thuật Bộ làm mát dầu AH1012T-CA

AH Thread Fan Dia. Capacity
Kacl / h
Hydraulic
system
L x H x W
m/m
Weight Phase Safety
RC”/PT” m / m △t=30℃ Hp kg Phase Approval
AH1012-CA* 1″ 250 5000 3~5 417*360*200 10 Single phase

CE,CCC





Nội dung đang cập nhật ...
